Change existing symbol in IMSMA.mxd

If you would like to replace the existing symbols, you need to use ArcGIS software to update IMSMA.mxd which is located in C:\IMSMAng\server\gis\maps folder.

As example Land by Type will be used.

IMSMA layer Land - by Type

1. Double-click on the symbol that you would like to change (SHA).
2. The following window displays



   Marker properties

3. You can change a form, colour, size, angle, mask etc. For Advanced editing, click on the symbol.
4. The following window displays



   Symbol editor - Foreground

5. If you would like to change the colour of the symbol then select the foreground layer and a colour.

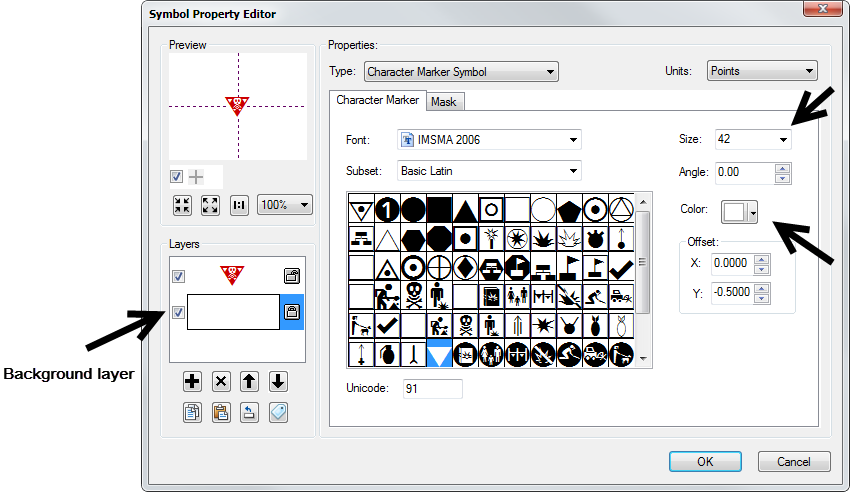

Symbol editor - Background

6. If you would like to change the background colour then select the background layer and a colour.

The size is different in the foreground and background layers of the symbol.

7. Click on OK to close the Symbol editor.
8. Click on OK to close the Marker property window.

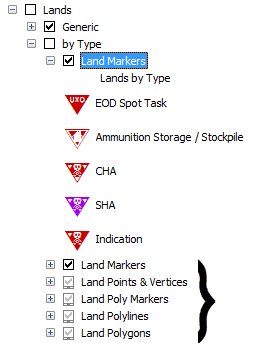

IMSMA layer Land - by Type

9. Apply the same change to the other layers in the same group.
