Customise Sub-Themes

The steps below describe what needs to be done in IMSMANG. The sub-theme needs also to be defined in the IMSMA.mxd and the map should be imported again. These steps are described in How to work with Sub-Themes in IMSMA.mxd.

IMSMA allows you to add up to five customised themes, called Sub-themes, to each of the IMSMA themes. Sub-themes can be created based on single-select IMSMA^NG system fields or Custom-Defined Fields for that theme.

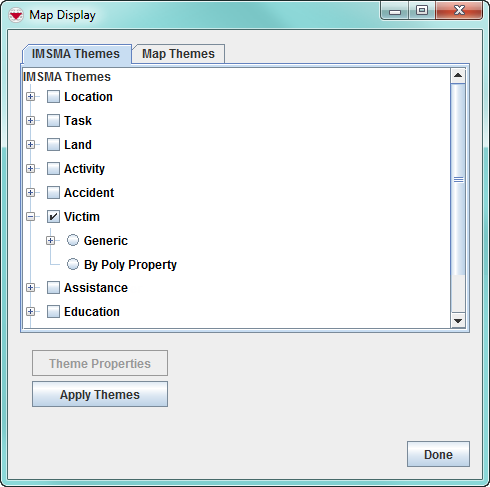

IMSMA Themes window

Steps

As an example, Victim by Gender theme will be used. To add sub-themes:

'
1. In the Customisation menu → Sub-Themes Manager.
2. Each theme contains five blank rows for adding a sub-theme. These are labelled UserDefined1, UserDefined2, UserDefined3, UserDefined4, and UserDefined5.

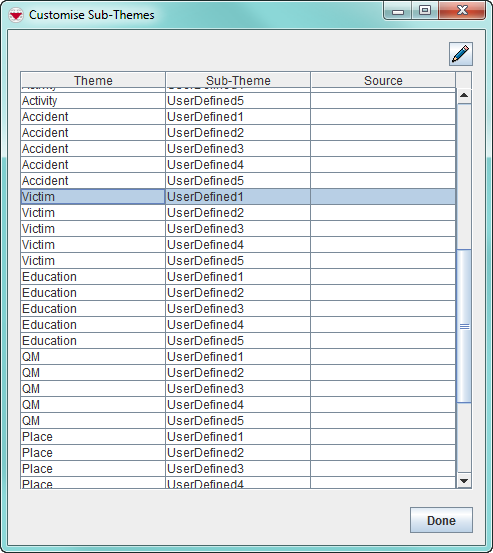

   Customise Sub-Themes window

3. Select the row of the sub-theme that you want to assign or reassign.
4. Click the button.



Customise Sub-Themes window

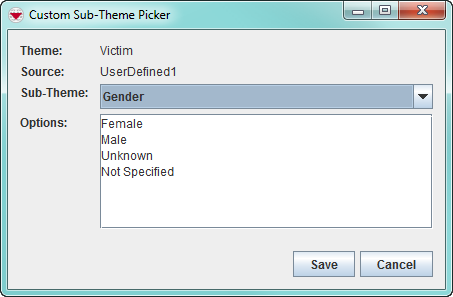

5. Select a field from the Sub-Theme drop-down list.
6. Click the Save button.
7. The sub-theme displays in the Source column on the Customise Sub-Theme window.

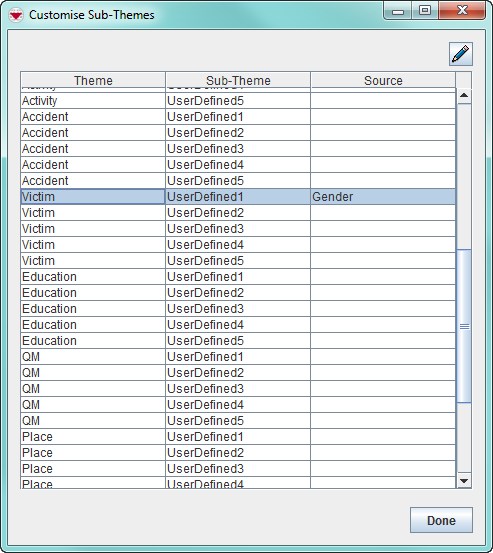

   Updated Customise Sub-Themes window

8. The sub-theme is automatically added to the IMSMA Themes tab of the Map Display Window.



   Updated IMSMA Themes window

   Once a sub-theme has been assigned to a blank row, that row cannot be unassigned (made blank) again. It can only be reassigned to another sub-theme.

   The sub-theme assignments are not stored in the IMSMA database. They are stored in the file C:\IMSMAng\client\conf\UserPrefs.props. The file is included in the Map Data option of backup and restore.

9. You have now done the definition steps in IMSMA^NG.
10. You now should proceed with the definition steps in ArcGIS.
