Add an Image to the Data Entry Form Template

The icon tool allows you to add a .jpg, .jpeg, .png, or .gif to the report template.

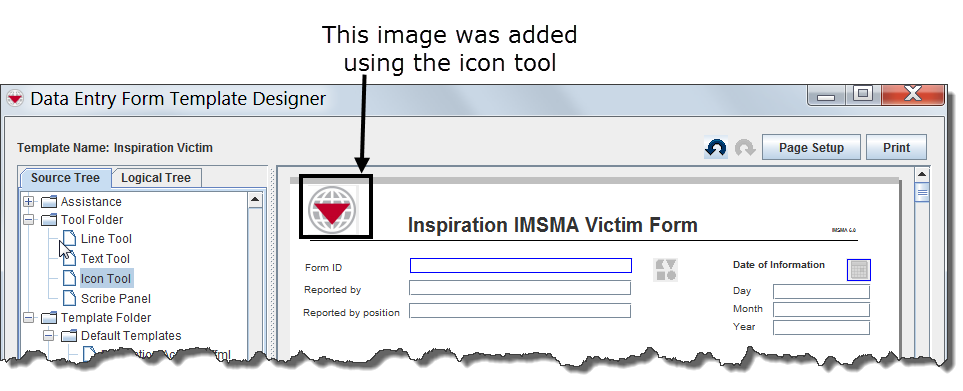

Image Added with the Icon Tool

Image Added with the Icon Tool

To add an image to the Data Entry Form template:

1. Expand the Tool node.
2. Under the Tool node, click the Icon Tool option.
3. While holding down the mouse button, drag the Icon Tool to the form design pane.
4. Click the Properties button.

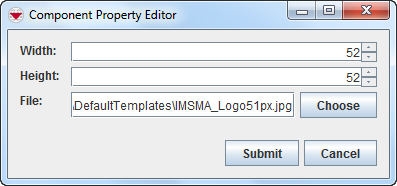

5. The Component Property Editor window displays.
6. From the Component Property Editor window, click the Choose button.
7. Navigate to the location of the image that you would like to add to the Data Entry Form template.
8. From the Open window, select the image file.
9. Click the Open button.



10. Click the Submit button.
11. The image is placed on the Data Entry Form template.



12. The image will get a grey shadow around it due to IMSMA increases the size a few pixels.
13. Open the Properties again and specify 1 pixel bigger than the image.

If you would like to change image/logotype then delete/clear the image from the template and drag in a new place holder. If you do not delete the image will not be updated.

By adding a Page header and Page footer on each page, fields are prevented from drifting upwards when editing a published template again.

The images for indicating the parts of the body where the victim was injured can be found in the C:\IMSMAng\client\FormTemplates\DefaultTemplates folder. The IMSMA logotype with size 51 pixel may be downloaded by right-click on this link and Save target/link as.
